Teeth On A Gear

In the intricate world of mechanical engineering, the concept of teeth on a gear is fundamental. Gears are essential components in various machines and mechanisms, enabling the transfer of motion and power between rotating shafts. Understanding the design, function, and types of gear teeth is crucial for engineers and enthusiasts alike. This post delves into the anatomy of gear teeth, their types, and their applications, providing a comprehensive overview of this critical mechanical element.

Table of Contents

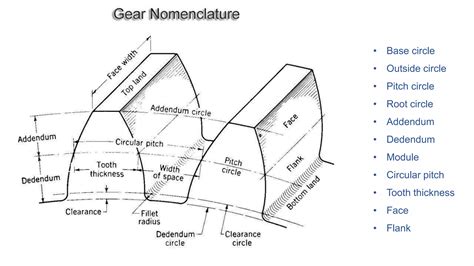

Anatomy of Gear Teeth

Gear teeth are the protruding parts on the circumference of a gear that mesh with the teeth of another gear to transmit motion. The design of gear teeth is critical for efficient power transmission and durability. Key components of gear teeth include:

Pitch Circle: An imaginary circle that passes through the pitch points of two meshing gears. The pitch circle diameter is a crucial parameter in gear design.
Addendum: The radial distance from the pitch circle to the outer circle (tip) of the gear tooth.
Dedendum: The radial distance from the pitch circle to the root circle (base) of the gear tooth.
Clearance: The radial distance between the dedendum of one gear and the addendum of the mating gear.
Circular Pitch: The distance measured along the pitch circle from a point on one tooth to the corresponding point on the adjacent tooth.
Module: The ratio of the pitch circle diameter to the number of teeth. It is a standard measure used in gear design.

Types of Gear Teeth

Gear teeth come in various shapes and profiles, each designed for specific applications. The most common types include:

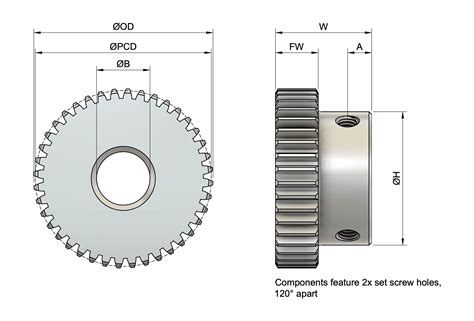

Spur Gears

Spur gears have straight teeth that are parallel to the axis of rotation. They are simple and efficient but can be noisy due to the sudden engagement of teeth. Spur gears are commonly used in applications where noise is not a critical factor, such as in clocks and simple machinery.

Helical Gears

Helical gears have teeth that are cut at an angle to the axis of rotation. This design allows for smoother and quieter operation compared to spur gears. Helical gears are widely used in automotive transmissions, industrial machinery, and other applications where noise reduction is important.

Bevel Gears

Bevel gears have teeth that are cut on a conical surface. They are used to transmit motion between intersecting shafts. Bevel gears are commonly found in differentials, power tools, and other applications where the direction of the shaft needs to be changed.

Worm Gears

Worm gears consist of a worm (a screw-like gear) and a worm wheel (a gear with teeth that mesh with the worm). They are used to transmit motion between non-intersecting and non-parallel shafts. Worm gears provide high gear reduction ratios and are often used in applications requiring precise control, such as in elevators and conveyor systems.

Rack and Pinion

Rack and pinion gears consist of a circular gear (pinion) that meshes with a linear gear (rack). This combination converts rotational motion into linear motion. Rack and pinion gears are commonly used in steering systems, linear actuators, and other applications requiring linear movement.

Design Considerations for Gear Teeth

Designing gear teeth involves several critical considerations to ensure optimal performance and durability. Key factors include:

Material Selection: The choice of material for gear teeth depends on the application's requirements, including load, speed, and environmental conditions. Common materials include steel, cast iron, and various alloys.
Tooth Profile: The shape and profile of the teeth affect the gear's performance. Standard profiles include involute, cycloid, and trochoid, each with its advantages and disadvantages.
Backlash: Backlash is the clearance between meshing gear teeth. Proper backlash is essential for smooth operation and to prevent binding. Too much backlash can cause noise and vibration, while too little can lead to excessive wear and heat.
Surface Finish: The surface finish of gear teeth affects their durability and efficiency. A smooth surface finish reduces friction and wear, while a rough finish can increase noise and heat generation.
Heat Treatment: Heat treatment processes, such as carburizing and hardening, enhance the strength and wear resistance of gear teeth. Proper heat treatment is crucial for gears operating under high loads and speeds.

Applications of Gear Teeth

Gear teeth are used in a wide range of applications across various industries. Some of the most common applications include:

Automotive Industry: Gears are essential components in automotive transmissions, differentials, and steering systems. They enable the efficient transfer of power from the engine to the wheels.
Industrial Machinery: Gears are used in various industrial machines, including conveyors, pumps, and compressors. They help in the precise control of motion and power transmission.
Aerospace Industry: Gears are critical in aircraft engines, landing gear systems, and control surfaces. They must withstand extreme conditions and ensure reliable performance.
Consumer Electronics: Gears are found in small appliances, cameras, and other consumer electronics. They enable precise movement and control in compact devices.
Robotics: Gears are used in robotic joints, actuators, and drive systems. They provide the necessary torque and precision for robotic movements.

Maintenance and Troubleshooting of Gear Teeth

Maintaining gear teeth is essential for ensuring the longevity and efficiency of mechanical systems. Regular inspection, lubrication, and proper alignment are key to preventing wear and damage. Common issues with gear teeth include:

Wear and Tear: Over time, gear teeth can wear down due to friction and load. Regular inspection and replacement of worn gears are necessary to maintain performance.
Pitting: Pitting is the formation of small cracks or pits on the surface of gear teeth. It is often caused by fatigue and can lead to tooth breakage if not addressed.
Scuffing: Scuffing occurs when the surfaces of meshing gear teeth rub against each other, causing localized heating and damage. Proper lubrication and surface finish can prevent scuffing.
Misalignment: Misalignment of gear teeth can cause uneven wear, noise, and vibration. Regular alignment checks and adjustments are necessary to maintain proper gear operation.

🛠️ Note: Regular maintenance and timely replacement of worn gears can significantly extend the lifespan of mechanical systems and prevent costly downtime.

Advancements in Gear Technology

The field of gear technology is continually evolving, driven by advancements in materials, manufacturing processes, and design techniques. Some of the latest developments include:

Advanced Materials: New materials, such as high-strength alloys and composites, are being developed to enhance the durability and performance of gear teeth.
Additive Manufacturing: Additive manufacturing techniques, such as 3D printing, allow for the creation of complex gear designs that were previously impossible to produce.
Computer-Aided Design (CAD): CAD software enables precise modeling and simulation of gear teeth, allowing engineers to optimize designs for specific applications.
Surface Treatments: Advanced surface treatments, such as plasma nitriding and physical vapor deposition (PVD), improve the wear resistance and durability of gear teeth.

These advancements are paving the way for more efficient, durable, and precise gear systems, opening up new possibilities in various industries.

Gear teeth are a fundamental component in mechanical engineering, enabling the efficient transfer of motion and power. Understanding the anatomy, types, and applications of gear teeth is crucial for engineers and enthusiasts. By considering design factors, maintaining gear systems, and staying updated with the latest advancements, one can ensure optimal performance and longevity of mechanical systems. The intricate design and function of teeth on a gear continue to drive innovation and progress in various industries, making them an indispensable part of modern engineering.
