Tetragonal Crystal Structure

Crystals are fascinating structures that have captivated scientists and enthusiasts alike for centuries. Their ordered arrangement of atoms or molecules gives rise to a wide range of properties that make them invaluable in various fields, from electronics to jewelry. One of the most intriguing crystal structures is the tetragonal crystal structure. This structure is characterized by its unique symmetry and properties, making it a subject of great interest in materials science and crystallography.

Table of Contents

Understanding the Tetragonal Crystal Structure

The tetragonal crystal structure is one of the seven crystal systems, each defined by the geometry of its unit cell. In a tetragonal system, the unit cell is a rectangular prism with a square base. This means that the lengths of the a and b axes are equal, while the c axis is different. The angles between the axes are all 90 degrees, giving the structure a distinct tetragonal symmetry.

To visualize this, imagine a cube that has been stretched or compressed along one axis. The resulting shape is a tetragonal prism. This simple yet elegant geometry underlies many important materials, including some forms of titanium dioxide (TiO2) and zirconium dioxide (ZrO2), which are used in various industrial applications.

Properties of Tetragonal Crystals

The properties of tetragonal crystals are largely determined by their unique structure. Some of the key properties include:

Anisotropy: Tetragonal crystals exhibit anisotropy, meaning their properties vary depending on the direction in which they are measured. This is due to the different lengths of the a and c axes.
Optical Properties: Many tetragonal crystals have interesting optical properties, such as birefringence, where light travels at different speeds in different directions through the crystal.
Mechanical Properties: The mechanical strength and hardness of tetragonal crystals can be directionally dependent, making them useful in applications where specific mechanical properties are required.
Electrical Properties: Some tetragonal crystals, such as certain forms of titanium dioxide, have unique electrical properties that make them useful in electronics and photovoltaics.

Examples of Tetragonal Crystals

Several important materials exhibit a tetragonal crystal structure. Some notable examples include:

Titanium Dioxide (TiO2): TiO2 is a widely used material in various applications, including pigments, catalysts, and photovoltaic cells. It can exist in several crystal structures, including the tetragonal rutile phase.
Zirconium Dioxide (ZrO2): ZrO2 is known for its high strength and resistance to corrosion. It is used in ceramics, dental implants, and as a refractory material. The tetragonal phase of ZrO2 is particularly stable at high temperatures.

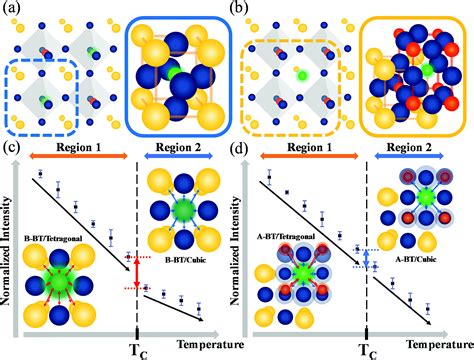

Barium Titanate (BaTiO3): BaTiO3 is a ferroelectric material with a tetragonal structure at room temperature. It is used in capacitors, transducers, and other electronic components.

Applications of Tetragonal Crystals

The unique properties of tetragonal crystals make them valuable in a wide range of applications. Some of the key areas where tetragonal crystals are used include:

Electronics: Materials like barium titanate are used in capacitors and other electronic components due to their ferroelectric properties.
Photovoltaics: Titanium dioxide in its tetragonal rutile phase is used in solar cells and other photovoltaic devices due to its excellent optical and electrical properties.
Catalysis: Titanium dioxide is also used as a catalyst in various chemical reactions, including the decomposition of pollutants.
Ceramics: Zirconium dioxide is used in high-strength ceramics and dental implants due to its mechanical properties and biocompatibility.

Characterization Techniques for Tetragonal Crystals

Characterizing the tetragonal crystal structure involves several techniques that help determine the crystal's properties and symmetry. Some of the most commonly used techniques include:

X-Ray Diffraction (XRD): XRD is a powerful tool for determining the crystal structure of materials. By analyzing the diffraction pattern, scientists can identify the tetragonal symmetry and measure the lattice parameters.
Scanning Electron Microscopy (SEM): SEM provides high-resolution images of the crystal's surface, allowing researchers to study its morphology and microstructure.
Transmission Electron Microscopy (TEM): TEM offers even higher resolution than SEM and can be used to study the internal structure of crystals, including defects and grain boundaries.
Raman Spectroscopy: Raman spectroscopy is used to study the vibrational modes of crystals, providing information about their chemical composition and structure.

🔍 Note: When using XRD, it is important to ensure that the sample is properly prepared to avoid any artifacts that could affect the results.

Synthesis of Tetragonal Crystals

The synthesis of tetragonal crystals can be achieved through various methods, depending on the desired material and its properties. Some common synthesis techniques include:

Solid-State Reaction: This method involves heating a mixture of reactants to high temperatures to form the desired crystal structure. It is commonly used for synthesizing oxides like titanium dioxide and zirconium dioxide.
Hydrothermal Synthesis: This technique involves reacting precursors in an aqueous solution at high temperatures and pressures. It is often used to synthesize high-quality crystals with controlled morphology.
Sol-Gel Method: The sol-gel method involves the hydrolysis and condensation of metal alkoxides to form a gel, which is then heated to form the crystal structure. This method is useful for synthesizing materials with high purity and homogeneity.
Chemical Vapor Deposition (CVD): CVD involves the deposition of a solid material from a vapor phase onto a substrate. It is used to synthesize thin films and coatings with controlled crystal structure.

🔍 Note: The choice of synthesis method depends on the specific requirements of the application, including the desired purity, morphology, and crystal size.

Challenges and Future Directions

While tetragonal crystals offer many advantages, there are also challenges associated with their synthesis and application. Some of the key challenges include:

Control of Crystal Size and Morphology: Achieving precise control over the size and shape of tetragonal crystals is crucial for many applications. This can be challenging due to the complex nature of crystal growth processes.
Stability and Phase Transitions: Some tetragonal crystals can undergo phase transitions at high temperatures or under mechanical stress, which can affect their properties. Understanding and controlling these transitions is an active area of research.
Integration with Other Materials: Integrating tetragonal crystals with other materials to create composite structures with enhanced properties is a challenging but promising area of research.

Future research in the field of tetragonal crystals is likely to focus on addressing these challenges and exploring new applications. Advances in synthesis techniques, characterization methods, and computational modeling will play a key role in this endeavor.

One promising area of research is the use of tetragonal crystals in energy storage and conversion devices. For example, titanium dioxide in its tetragonal rutile phase is being explored for use in lithium-ion batteries and supercapacitors due to its high surface area and excellent electrochemical properties.

Another exciting direction is the development of tetragonal crystals for biomedical applications. Zirconium dioxide, with its biocompatibility and mechanical strength, is being investigated for use in dental implants and bone replacement materials.

In addition, the use of tetragonal crystals in optoelectronics and photonics is an active area of research. Materials like barium titanate are being explored for use in optical modulators, waveguides, and other photonic devices due to their unique optical properties.

Overall, the field of tetragonal crystals is rich with opportunities for innovation and discovery. As our understanding of these materials continues to grow, so too will their applications in various industries.

In conclusion, the tetragonal crystal structure is a fascinating and important area of study in materials science. Its unique symmetry and properties make it valuable in a wide range of applications, from electronics to biomedical devices. By understanding the synthesis, characterization, and properties of tetragonal crystals, researchers can develop new materials with enhanced performance and functionality. The future of tetragonal crystals is bright, with many exciting possibilities on the horizon. As we continue to explore and innovate in this field, we can expect to see even more remarkable advancements in the years to come.
