In the realm of computer graphics and 3D modeling, understanding the fundamentals of Translation Rotation Reflection is crucial. These transformations are the building blocks that allow artists and developers to manipulate objects within a 3D space, creating dynamic and interactive visuals. Whether you're working on a video game, an animation, or a virtual reality experience, mastering these transformations is essential for bringing your digital creations to life.
Understanding Translation
Translation is the process of moving an object from one position to another without changing its orientation or shape. This transformation is straightforward and involves specifying the distance and direction in which the object should move. In a 3D space, translation is typically defined by three coordinates: X, Y, and Z.
For example, if you want to move an object 5 units to the right along the X-axis, 3 units up along the Y-axis, and 2 units forward along the Z-axis, you would apply a translation transformation with the coordinates (5, 3, 2).
The Mathematics Behind Translation
Mathematically, translation can be represented using a translation matrix. The translation matrix for moving an object by (Tx, Ty, Tz) is:
| 1 | 0 | 0 | Tx |
|---|---|---|---|
| 0 | 1 | 0 | Ty |
| 0 | 0 | 1 | Tz |
| 0 | 0 | 0 | 1 |
This matrix, when multiplied by the object's coordinate vector, results in the new position of the object.
Understanding Rotation
Rotation involves turning an object around a specified axis. This transformation changes the object’s orientation but not its position or shape. Rotation is commonly defined by an angle and an axis around which the object will rotate. The most common axes are the X, Y, and Z axes.
For instance, rotating an object 45 degrees around the Y-axis will change its orientation but keep it in the same position. Understanding rotation is vital for creating realistic movements and interactions in 3D environments.
The Mathematics Behind Rotation
Rotation can be represented using rotation matrices. The rotation matrix for rotating an object by an angle θ around the X-axis is:
| 1 | 0 | 0 |
|---|---|---|
| 0 | cos(θ) | -sin(θ) |
| 0 | sin(θ) | cos(θ) |
Similarly, rotation matrices for the Y and Z axes can be derived. These matrices, when multiplied by the object's coordinate vector, result in the new orientation of the object.

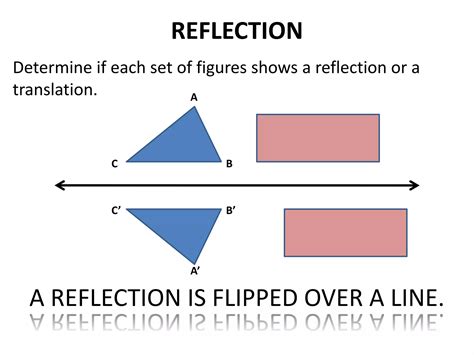

Understanding Reflection
Reflection is the process of flipping an object across a specified plane. This transformation changes the object’s orientation and position relative to the plane of reflection. Reflection is useful for creating symmetrical objects and effects, such as mirrors or water surfaces.
For example, reflecting an object across the XZ-plane will flip it vertically, changing its Y-coordinate while keeping the X and Z coordinates the same.
The Mathematics Behind Reflection
Reflection can be represented using reflection matrices. The reflection matrix for reflecting an object across the XZ-plane is:
| 1 | 0 | 0 |
|---|---|---|
| 0 | -1 | 0 |
| 0 | 0 | 1 |
This matrix, when multiplied by the object's coordinate vector, results in the reflected position of the object.
Combining Transformations
In many cases, you’ll need to combine multiple Translation Rotation Reflection transformations to achieve the desired effect. This can be done by multiplying the transformation matrices in the correct order. The order of multiplication is crucial because matrix multiplication is not commutative.
For example, if you want to first translate an object, then rotate it, and finally reflect it, you would multiply the matrices in the following order:
Reflection Matrix * Rotation Matrix * Translation Matrix
This combined transformation matrix can then be applied to the object's coordinate vector to achieve the final position and orientation.
💡 Note: When combining transformations, always remember to apply them in the correct order. The order of operations can significantly affect the final result.
Applications of Translation Rotation Reflection
Translation Rotation Reflection transformations are used in a wide range of applications, including:
- Video Games: Transformations are used to move characters, objects, and cameras within the game world.
- Animations: Animators use these transformations to create smooth and realistic movements for characters and objects.
- Virtual Reality: In VR, transformations are essential for creating immersive experiences by allowing users to interact with the virtual environment.
- Computer-Aided Design (CAD): Engineers and designers use transformations to manipulate 3D models and create detailed designs.
Understanding and mastering these transformations is key to creating dynamic and interactive 3D content.
Advanced Topics in Transformations
While the basics of Translation Rotation Reflection are straightforward, there are more advanced topics to explore. These include:
- Scaling: Changing the size of an object while maintaining its shape.
- Shearing: Slanting an object along an axis.
- Homogeneous Coordinates: A mathematical representation that simplifies the combination of transformations.
Exploring these advanced topics can help you create even more complex and realistic 3D effects.
💡 Note: Advanced transformations often require a deeper understanding of linear algebra and matrix operations.
Practical Examples
To better understand Translation Rotation Reflection, let’s look at some practical examples:
Example 1: Moving a Car in a Game
In a racing game, you might want to move a car forward along the Z-axis. You would apply a translation transformation with the coordinates (0, 0, 5) to move the car 5 units forward.
Example 2: Rotating a Spinning Top
For an animation of a spinning top, you would apply a rotation transformation around the Y-axis. The rotation matrix would be:
| cos(θ) | 0 | sin(θ) |
|---|---|---|
| 0 | 1 | 0 |
| -sin(θ) | 0 | cos(θ) |
Example 3: Reflecting a Mirror Image
To create a mirror image effect, you would reflect an object across the YZ-plane. The reflection matrix would be:
| -1 | 0 | 0 |
|---|---|---|
| 0 | 1 | 0 |
| 0 | 0 | 1 |
These examples illustrate how Translation Rotation Reflection can be applied in various scenarios to achieve different effects.
In conclusion, Translation Rotation Reflection are fundamental concepts in computer graphics and 3D modeling. Understanding these transformations allows you to manipulate objects in a 3D space, creating dynamic and interactive visuals. Whether you’re working on a video game, an animation, or a virtual reality experience, mastering these transformations is essential for bringing your digital creations to life. By combining these transformations and exploring advanced topics, you can create even more complex and realistic 3D effects, enhancing the overall quality and immersion of your projects.
