Types Of Drill Bits

Drilling is a fundamental process in various industries, from construction and woodworking to metal fabrication and DIY projects. The effectiveness of drilling depends significantly on the types of drill bits used. Understanding the different types of drill bits and their applications can help you choose the right tool for the job, ensuring efficiency and precision. This guide will delve into the various types of drill bits, their uses, and tips for selecting the best one for your needs.

Understanding Drill Bits

Drill bits are essential tools designed to create holes in various materials. They come in different shapes, sizes, and materials, each suited for specific tasks. The choice of drill bit can affect the quality of the hole, the speed of the drilling process, and the longevity of the bit itself. Whether you are a professional or a hobbyist, knowing the basics of drill bits can save you time and effort.

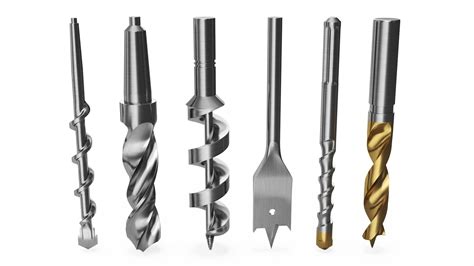

Types of Drill Bits

There are several types of drill bits available, each designed for different materials and applications. Here are some of the most common types:

Twist Drill Bits

Twist drill bits are the most common and versatile type of drill bit. They are characterized by their spiral or twist design, which helps in removing material efficiently. Twist drill bits are suitable for drilling holes in wood, metal, and plastic. They come in various sizes and materials, including high-speed steel (HSS) and carbide-tipped bits.

Twist drill bits are ideal for general-purpose drilling and are available in both standard and metric sizes. They are often used in hand drills, drill presses, and other power tools. The spiral design helps in clearing debris from the hole, making the drilling process smoother and faster.

Masonry Drill Bits

Masonry drill bits are specifically designed for drilling into concrete, brick, and other masonry materials. They have a carbide tip that can withstand the abrasive nature of these materials. Masonry drill bits are typically used with a hammer drill, which provides the necessary impact to break through hard surfaces.

These bits are essential for tasks such as installing anchors, mounting shelves, and creating holes for plumbing or electrical work. They come in various sizes and are often used with a dust collection system to keep the work area clean.

Spade Drill Bits

Spade drill bits, also known as paddle bits, are designed for drilling large holes in wood. They have a flat, paddle-shaped tip with a sharp cutting edge. Spade bits are ideal for tasks such as creating holes for electrical outlets, plumbing, and ventilation ducts.

These bits are typically used with a drill press or a handheld drill. They are available in various sizes and are often used for rough carpentry work. Spade bits are not suitable for drilling into metal or masonry materials.

Forstner Drill Bits

Forstner drill bits are designed for drilling precise, flat-bottomed holes in wood. They have a center point and two cutting edges that create a clean, flat surface. Forstner bits are ideal for tasks such as creating holes for hinges, locks, and other hardware.

These bits are typically used with a drill press for better control and accuracy. They come in various sizes and are often used by woodworkers and cabinet makers. Forstner bits are not suitable for drilling into metal or masonry materials.

Step Drill Bits

Step drill bits, also known as cone bits, are designed for drilling holes of varying sizes in metal and plastic. They have a stepped design with multiple cutting edges, allowing you to create holes of different diameters with a single bit. Step drill bits are ideal for tasks such as creating holes for bolts, screws, and other fasteners.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in automotive and HVAC applications. Step drill bits are not suitable for drilling into wood or masonry materials.

Countersink Drill Bits

Countersink drill bits are designed for creating conical holes that allow screws to sit flush with the surface of the material. They have a center point and a cutting edge that creates a tapered hole. Countersink bits are ideal for tasks such as installing screws in wood, metal, and plastic.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in woodworking and metalworking applications. Countersink bits are not suitable for drilling into masonry materials.

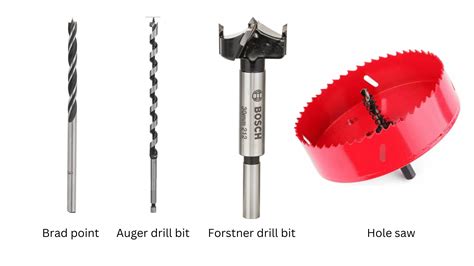

Brad Point Drill Bits

Brad point drill bits, also known as dowel bits, are designed for drilling precise holes in wood. They have a center point and two cutting edges that create a clean, accurate hole. Brad point bits are ideal for tasks such as creating holes for dowels, biscuits, and other joinery hardware.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used by woodworkers and cabinet makers. Brad point bits are not suitable for drilling into metal or masonry materials.

Auger Drill Bits

Auger drill bits are designed for drilling deep holes in wood. They have a spiral flute that helps in removing material efficiently and a screw tip that pulls the bit into the wood. Auger bits are ideal for tasks such as creating holes for posts, beams, and other structural elements.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in construction and carpentry applications. Auger bits are not suitable for drilling into metal or masonry materials.

Hole Saw Drill Bits

Hole saw drill bits are designed for creating large holes in wood, metal, and plastic. They have a cylindrical cutting edge that removes a core of material, leaving a clean, circular hole. Hole saw bits are ideal for tasks such as creating holes for plumbing, electrical, and ventilation work.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in construction and DIY applications. Hole saw bits are not suitable for drilling into masonry materials.

Ejector Drill Bits

Ejector drill bits are designed for creating holes in wood, metal, and plastic. They have a spring-loaded ejector mechanism that helps in removing the core of material from the bit. Ejector bits are ideal for tasks such as creating holes for plumbing, electrical, and ventilation work.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in construction and DIY applications. Ejector bits are not suitable for drilling into masonry materials.

Center Drill Bits

Center drill bits are designed for creating a shallow, conical hole in the center of a workpiece. They have a center point and a cutting edge that creates a tapered hole. Center bits are ideal for tasks such as creating a starting point for larger drill bits or for drilling pilot holes.

These bits are typically used with a drill press for better control and accuracy. They come in various sizes and are often used in metalworking and machining applications. Center bits are not suitable for drilling into wood or masonry materials.

Core Drill Bits

Core drill bits are designed for creating large holes in concrete, brick, and other masonry materials. They have a cylindrical cutting edge that removes a core of material, leaving a clean, circular hole. Core bits are ideal for tasks such as creating holes for plumbing, electrical, and ventilation work.

These bits are typically used with a core drill or a handheld drill. They come in various sizes and are often used in construction and masonry applications. Core bits are not suitable for drilling into wood or metal materials.

Plug Cutter Drill Bits

Plug cutter drill bits are designed for creating cylindrical plugs of material. They have a cylindrical cutting edge that removes a core of material, leaving a clean, circular hole. Plug cutter bits are ideal for tasks such as creating plugs for dowels, biscuits, and other joinery hardware.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in woodworking and cabinet making applications. Plug cutter bits are not suitable for drilling into metal or masonry materials.

Tapered Drill Bits

Tapered drill bits are designed for creating conical holes in wood, metal, and plastic. They have a tapered cutting edge that creates a hole with a wider diameter at the top and a narrower diameter at the bottom. Tapered bits are ideal for tasks such as creating holes for tapered dowels, plugs, and other joinery hardware.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in woodworking and cabinet making applications. Tapered bits are not suitable for drilling into masonry materials.

Cobalt Drill Bits

Cobalt drill bits are designed for drilling into hard materials such as stainless steel, titanium, and other high-strength alloys. They have a cobalt alloy tip that can withstand high temperatures and abrasive materials. Cobalt bits are ideal for tasks such as creating holes for fasteners, bolts, and other hardware.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in automotive, aerospace, and industrial applications. Cobalt bits are not suitable for drilling into wood or masonry materials.

Carbide Drill Bits

Carbide drill bits are designed for drilling into hard materials such as concrete, brick, and other masonry materials. They have a carbide tip that can withstand high temperatures and abrasive materials. Carbide bits are ideal for tasks such as creating holes for anchors, bolts, and other hardware.

These bits are typically used with a hammer drill or a handheld drill. They come in various sizes and are often used in construction and masonry applications. Carbide bits are not suitable for drilling into wood or metal materials.

Diamond Drill Bits

Diamond drill bits are designed for drilling into hard materials such as glass, ceramic, and other brittle materials. They have a diamond-tipped cutting edge that can withstand high temperatures and abrasive materials. Diamond bits are ideal for tasks such as creating holes for plumbing, electrical, and ventilation work.

These bits are typically used with a handheld drill or a drill press. They come in various sizes and are often used in construction and DIY applications. Diamond bits are not suitable for drilling into wood or metal materials.

Step Drill Bits

Paddle Drill Bits

Paddle drill bits, also known as spade bits, are designed for drilling large holes in wood. They have a flat, paddle-shaped tip with a sharp cutting edge. Paddle bits are ideal for tasks such as creating holes for electrical outlets, plumbing, and ventilation ducts.

These bits are typically used with a drill press or a handheld drill. They are available in various sizes and are often used for rough carpentry work. Paddle bits are not suitable for drilling into metal or masonry materials.

Hole Saw Drill Bits

Ejector Drill Bits

Center Drill Bits

Core Drill Bits

Plug Cutter Drill Bits

Tapered Drill Bits

Cobalt Drill Bits

Carbide Drill Bits

Diamond Drill Bits

Choosing the Right Drill Bit

Selecting the right drill bit depends on the material you are drilling into and the specific task at hand. Here are some tips for choosing the right drill bit:

Material Type: Different materials require different types of drill bits. For example, twist drill bits are suitable for wood, metal, and plastic, while masonry drill bits are designed for concrete and brick.
Bit Size: Choose a drill bit size that matches the diameter of the hole you need to create. Drill bits come in various sizes, so measure the hole diameter before selecting a bit.
Bit Material: The material of the drill bit affects its durability and performance. High-speed steel (HSS) bits are suitable for general-purpose drilling, while carbide and cobalt bits are designed for harder materials.
Bit Coating: Some drill bits have coatings that enhance their performance and longevity. For example, titanium-coated bits are more durable and resistant to heat, making them ideal for drilling into hard materials.
Bit Design: The design of the drill bit affects its cutting efficiency and the quality of the hole. For example, twist drill bits have a spiral design that helps in removing material efficiently, while Forstner bits create precise, flat-bottomed holes.

When selecting a drill bit, consider the specific requirements of your project and choose a bit that is designed for the material and task at hand. Using the right drill bit can save you time and effort, ensuring a clean and accurate hole every time.

Maintaining Your Drill Bits

Proper maintenance of your drill bits can extend their lifespan and ensure optimal performance. Here are some tips for maintaining your drill bits:

Cleaning: After each use, clean your drill bits to remove any debris or residue. Use a brush or compressed air to clean the flutes and cutting edges.
Sharpening: Over time, drill bits can become dull and less effective. Sharpen your drill bits regularly to maintain their cutting edge. You can use a sharpening tool or a bench grinder to sharpen your bits.
Storage: Store your drill bits in a dry, cool place to prevent rust and corrosion. Use a bit index or a bit organizer to keep your bits organized and easily accessible.
Inspection: Regularly inspect your drill bits for signs of wear or damage. Replace any bits that are excessively worn or damaged to ensure optimal performance.

By following these maintenance tips,
