Vacuum Filtration Setup

Vacuum filtration is a widely used laboratory technique for separating solids from liquids. This method is particularly effective for filtering small volumes of liquid and is commonly employed in various scientific and industrial applications. Setting up a proper vacuum filtration setup is crucial for achieving efficient and accurate results. This guide will walk you through the steps involved in setting up a vacuum filtration system, ensuring you understand the process and can perform it confidently.

Table of Contents

Understanding Vacuum Filtration

Vacuum filtration involves the use of a vacuum to draw liquid through a filter paper, leaving the solid particles behind. This technique is faster and more efficient than gravity filtration, making it ideal for separating fine precipitates from solutions. The key components of a vacuum filtration setup include:

A vacuum pump or aspirator
A filter flask
A Buchner funnel
Filter paper
A rubber stopper or adapter
Tubing

Setting Up the Vacuum Filtration System

To set up a vacuum filtration system, follow these detailed steps:

Gathering the Necessary Equipment

Before you begin, ensure you have all the required equipment. This includes:

A vacuum pump or aspirator
A filter flask (usually a side-arm flask)
A Buchner funnel
Filter paper
A rubber stopper or adapter
Tubing

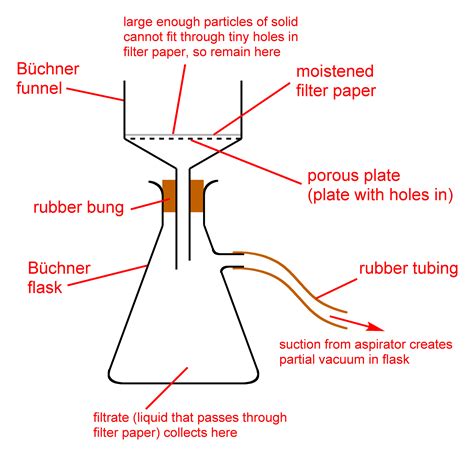

Assembling the Vacuum Filtration Setup

Follow these steps to assemble your vacuum filtration setup:

Connect the vacuum pump or aspirator to the filter flask using tubing. Ensure the tubing is securely attached to both the vacuum source and the side arm of the flask.
Place the filter paper in the Buchner funnel. The filter paper should fit snugly and cover the perforations at the bottom of the funnel.
Attach the Buchner funnel to the filter flask using a rubber stopper or adapter. Make sure the funnel is securely fastened to prevent leaks.
Wet the filter paper with a small amount of the solvent you will be using. This helps to seal the paper to the funnel and ensures even filtration.

Performing the Filtration

Once your vacuum filtration setup is assembled, you can proceed with the filtration process:

Pour the mixture to be filtered into the Buchner funnel. The liquid will be drawn through the filter paper by the vacuum, leaving the solid particles behind.
Monitor the filtration process. If the filter paper becomes clogged, you may need to replace it with a new one.
Once all the liquid has passed through the filter paper, turn off the vacuum and disconnect the tubing.
Carefully remove the Buchner funnel from the filter flask. The solid particles will be on the filter paper, and the filtrate will be in the flask.

🔍 Note: Always ensure that the vacuum is turned off before disconnecting any tubing or removing the Buchner funnel to avoid spills and contamination.

Maintaining Your Vacuum Filtration Setup

Maintaining your vacuum filtration setup is essential for ensuring its longevity and efficiency. Here are some tips for maintaining your equipment:

Regularly clean the filter flask, Buchner funnel, and tubing to remove any residue or contaminants.
Inspect the filter paper for any tears or damage before use. Replace it if necessary.
Check the vacuum pump or aspirator for any signs of wear or malfunction. Replace or repair as needed.
Store all components in a clean, dry place to prevent contamination and damage.

Common Applications of Vacuum Filtration

Vacuum filtration is used in a variety of applications across different fields. Some common uses include:

Separating precipitates from solutions in chemical reactions
Purifying liquids by removing suspended solids
Concentrating solutions by removing excess solvent
Isolating and collecting solid products in pharmaceutical and biotechnology processes

Troubleshooting Common Issues

Even with proper setup, you may encounter issues during vacuum filtration. Here are some common problems and their solutions:

Slow Filtration

If the filtration process is slower than expected, consider the following:

Check for clogs in the filter paper. Replace it if necessary.
Ensure the vacuum pump or aspirator is functioning correctly.
Verify that the tubing is securely attached and not leaking.

Leaks in the System

Leaks can disrupt the filtration process and reduce efficiency. To address leaks:

Inspect all connections, including the tubing, rubber stopper, and Buchner funnel.
Tighten any loose connections.
Replace any damaged or worn-out components.

Contamination

Contamination can occur if the equipment is not properly cleaned. To prevent contamination:

Clean all components thoroughly before and after use.
Store equipment in a clean, dry place.
Use fresh filter paper for each filtration.

🔍 Note: Regular maintenance and inspection of your vacuum filtration setup can help prevent many common issues and ensure smooth operation.

Safety Precautions

Safety is paramount when working with vacuum filtration. Follow these precautions to ensure a safe working environment:

Always wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
Ensure the vacuum pump or aspirator is properly grounded to prevent electrical hazards.
Handle chemicals with care, following all safety guidelines and protocols.
Work in a well-ventilated area to avoid inhalation of harmful fumes.

Vacuum filtration is a versatile and efficient technique for separating solids from liquids. By understanding the components and steps involved in setting up a vacuum filtration setup, you can perform this process with confidence and achieve accurate results. Regular maintenance and troubleshooting will help ensure the longevity and efficiency of your equipment, making vacuum filtration a reliable tool in your laboratory or industrial setting.
