The Vapour Compression Cycle is a fundamental process used in various cooling and refrigeration systems. This cycle is the backbone of modern air conditioning units, refrigerators, and heat pumps. Understanding the Vapour Compression Cycle is crucial for anyone involved in HVAC (Heating, Ventilation, and Air Conditioning) or refrigeration engineering. This post will delve into the intricacies of the Vapour Compression Cycle, its components, and its applications.
The Basics of the Vapour Compression Cycle
The Vapour Compression Cycle operates on the principle of phase changes of a refrigerant. The cycle consists of four main processes: compression, condensation, expansion, and evaporation. Each of these processes plays a critical role in transferring heat from one area to another.

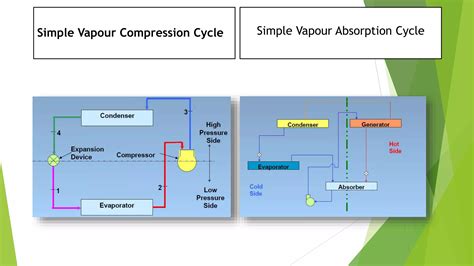

Components of the Vapour Compression Cycle
The Vapour Compression Cycle involves several key components:
- Compressor: This component compresses the refrigerant vapor, increasing its pressure and temperature.
- Condenser: The condenser cools the high-pressure, high-temperature refrigerant vapor, converting it into a liquid.
- Expansion Valve: This valve reduces the pressure of the liquid refrigerant, causing it to expand and cool.
- Evaporator: The evaporator absorbs heat from the surrounding environment, converting the low-pressure liquid refrigerant back into a vapor.

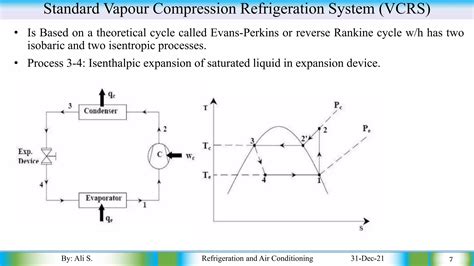

The Four Stages of the Vapour Compression Cycle
The Vapour Compression Cycle can be broken down into four main stages:
1. Compression
In the compression stage, the refrigerant vapor is drawn into the compressor. The compressor increases the pressure and temperature of the refrigerant vapor. This high-pressure, high-temperature vapor is then sent to the condenser.
2. Condensation
In the condenser, the high-pressure, high-temperature refrigerant vapor releases heat to the surrounding environment. This causes the refrigerant to condense into a high-pressure liquid. The heat released during this process is typically dissipated through a heat exchanger, such as a coil or radiator.
3. Expansion
The high-pressure liquid refrigerant then passes through an expansion valve. This valve reduces the pressure of the refrigerant, causing it to expand and cool rapidly. The resulting low-pressure, low-temperature liquid refrigerant is then sent to the evaporator.
4. Evaporation
In the evaporator, the low-pressure liquid refrigerant absorbs heat from the surrounding environment. This causes the refrigerant to evaporate, converting it back into a low-pressure vapor. The heat absorbed during this process is what cools the space or substance being refrigerated.
Applications of the Vapour Compression Cycle
The Vapour Compression Cycle is used in a wide range of applications, including:
- Air Conditioning: In air conditioning systems, the Vapour Compression Cycle is used to cool indoor spaces by removing heat and humidity.
- Refrigeration: Refrigerators and freezers use the Vapour Compression Cycle to maintain low temperatures, preserving food and other perishable items.
- Heat Pumps: Heat pumps use the Vapour Compression Cycle to transfer heat from one location to another, providing both heating and cooling capabilities.
- Industrial Refrigeration: Large-scale industrial processes, such as food processing and chemical manufacturing, rely on the Vapour Compression Cycle for cooling and refrigeration.
Efficiency and Performance of the Vapour Compression Cycle

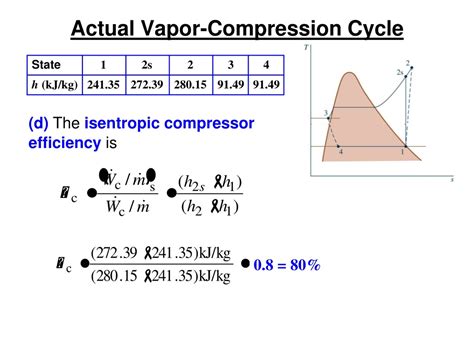

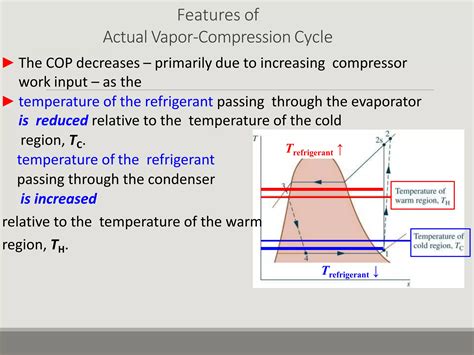

The efficiency of the Vapour Compression Cycle is measured by its Coefficient of Performance (COP). The COP is the ratio of the heat removed from the cooled space to the work input required to operate the system. A higher COP indicates a more efficient system.
Several factors can affect the efficiency and performance of the Vapour Compression Cycle:
- Refrigerant Selection: The choice of refrigerant can significantly impact the efficiency of the cycle. Different refrigerants have varying thermodynamic properties, affecting their performance in the cycle.
- System Design: The design of the system, including the size and type of components, can affect its efficiency. Proper sizing and selection of components are crucial for optimal performance.
- Maintenance: Regular maintenance, including cleaning and replacing filters, checking for leaks, and ensuring proper refrigerant levels, can help maintain the efficiency of the system.
To further illustrate the efficiency of different refrigerants, consider the following table:
| Refrigerant | COP | Typical Applications |
|---|---|---|
| R-134a | 3.5 | Automotive air conditioning, domestic refrigeration |
| R-410A | 4.0 | Residential and commercial air conditioning |
| R-744 (CO2) | 2.5 | Commercial refrigeration, heat pumps |
🔍 Note: The COP values provided are approximate and can vary based on specific operating conditions and system designs.
Environmental Considerations
The Vapour Compression Cycle has significant environmental implications, particularly due to the use of refrigerants. Many traditional refrigerants, such as chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs), are known to deplete the ozone layer and contribute to global warming. As a result, there has been a global shift towards more environmentally friendly refrigerants, such as hydrofluorocarbons (HFCs) and natural refrigerants like ammonia and carbon dioxide.
In addition to refrigerant selection, the energy efficiency of the Vapour Compression Cycle is crucial for reducing its environmental impact. More efficient systems require less energy to operate, resulting in lower greenhouse gas emissions. Advances in technology, such as variable-speed compressors and improved heat exchangers, have led to significant improvements in the energy efficiency of Vapour Compression Cycle systems.
Future Trends in the Vapour Compression Cycle
The future of the Vapour Compression Cycle is focused on improving efficiency, reducing environmental impact, and enhancing performance. Some of the key trends include:
- Advanced Refrigerants: The development of new refrigerants with lower global warming potential (GWP) and ozone depletion potential (ODP) is a major focus. Refrigerants like R-32 and R-1234yf are gaining popularity due to their lower environmental impact.
- Smart Technology: The integration of smart technology, such as IoT sensors and machine learning algorithms, can optimize the performance of Vapour Compression Cycle systems. These technologies can monitor and adjust system parameters in real-time, improving efficiency and reliability.
- Renewable Energy Integration: Combining Vapour Compression Cycle systems with renewable energy sources, such as solar and wind power, can further reduce their environmental impact. This integration can help achieve sustainable and energy-efficient cooling and refrigeration solutions.
In conclusion, the Vapour Compression Cycle is a vital process in modern cooling and refrigeration systems. Its efficiency, performance, and environmental impact are influenced by various factors, including refrigerant selection, system design, and maintenance. As technology advances, the future of the Vapour Compression Cycle looks promising, with a focus on sustainability and improved performance. Understanding the intricacies of this cycle is essential for anyone involved in HVAC or refrigeration engineering, as it forms the foundation of these critical systems.
