Velocity Against Time Graph

Understanding the dynamics of motion is fundamental in physics, and one of the most effective tools for this purpose is the Velocity Against Time Graph. This graph provides a visual representation of how an object's velocity changes over time, offering insights into acceleration, deceleration, and constant velocity. By analyzing these graphs, we can derive essential information about an object's motion, making them invaluable in both educational and practical applications.

Table of Contents

Understanding Velocity Against Time Graphs

A Velocity Against Time Graph plots velocity on the y-axis and time on the x-axis. The slope of the graph at any point represents the acceleration of the object at that instant. This graph is particularly useful because it allows us to determine not only the velocity but also the displacement and acceleration of an object over time.

Key Features of Velocity Against Time Graphs

Several key features make Velocity Against Time Graphs indispensable for analyzing motion:

Slope of the Graph: The slope at any point on the graph represents the acceleration. A positive slope indicates acceleration, a negative slope indicates deceleration, and a zero slope indicates constant velocity.

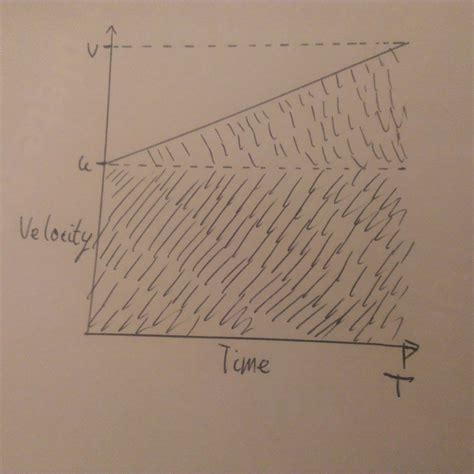

Area Under the Curve: The area under the graph between two points in time represents the displacement of the object over that time interval.
Intercepts: The y-intercept represents the initial velocity of the object, while the x-intercept (if it exists) represents the time at which the object's velocity returns to zero.

Interpreting Different Shapes of Velocity Against Time Graphs

The shape of a Velocity Against Time Graph can vary depending on the type of motion. Here are some common shapes and their interpretations:

Constant Velocity

A horizontal line on a Velocity Against Time Graph indicates constant velocity. The object is moving at a steady speed without any acceleration or deceleration.

Uniform Acceleration

A straight line with a positive or negative slope indicates uniform acceleration. The object is either speeding up or slowing down at a constant rate.

Non-Uniform Acceleration

A curved line on a Velocity Against Time Graph indicates non-uniform acceleration. The object's velocity is changing at a varying rate, which can be due to complex forces acting on it.

Deceleration

A line with a negative slope indicates deceleration. The object is slowing down over time.

Calculating Displacement from a Velocity Against Time Graph

One of the most practical applications of a Velocity Against Time Graph is calculating the displacement of an object. The displacement can be found by calculating the area under the graph between the initial and final times. This area can be determined using geometric shapes or integration, depending on the complexity of the graph.

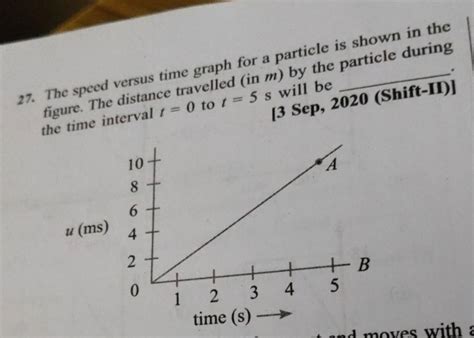

For example, consider a graph where the velocity increases linearly from 0 to 10 m/s over 5 seconds. The area under this graph (a triangle) can be calculated as:

📝 Note: The area of a triangle is given by 1/2 * base * height. In this case, the base is 5 seconds, and the height is 10 m/s, so the displacement is 1/2 * 5 * 10 = 25 meters.

Calculating Acceleration from a Velocity Against Time Graph

Acceleration can be determined from the slope of the Velocity Against Time Graph. If the graph is a straight line, the slope is constant and represents the acceleration. For non-linear graphs, the slope at any point gives the instantaneous acceleration.

For instance, if the velocity increases from 0 to 20 m/s over 4 seconds, the slope of the graph is 20 m/s / 4 s = 5 m/s². This means the object is accelerating at a rate of 5 m/s².

Examples of Velocity Against Time Graphs

Let's look at a few examples to illustrate how Velocity Against Time Graphs can be used to analyze different types of motion.

Example 1: Constant Velocity

Consider an object moving at a constant velocity of 15 m/s for 10 seconds. The Velocity Against Time Graph would be a horizontal line at 15 m/s. The displacement over this time period would be:

Displacement = Velocity * Time = 15 m/s * 10 s = 150 meters.

Example 2: Uniform Acceleration

Suppose an object starts from rest and accelerates uniformly to a velocity of 30 m/s over 6 seconds. The Velocity Against Time Graph would be a straight line with a positive slope. The acceleration can be calculated as:

Acceleration = Change in Velocity / Time = 30 m/s / 6 s = 5 m/s².

The displacement over this time period can be found by calculating the area under the graph, which is a triangle with a base of 6 seconds and a height of 30 m/s:

Displacement = 1/2 * Base * Height = 1/2 * 6 * 30 = 90 meters.

Example 3: Non-Uniform Acceleration

For an object with non-uniform acceleration, the Velocity Against Time Graph might be a curve. For instance, if the velocity increases according to the equation v(t) = 2t², where t is time in seconds, the graph would be a parabola. The acceleration at any point can be found by differentiating the velocity equation:

Acceleration = dv/dt = 4t.

To find the displacement, we would integrate the velocity equation over the desired time interval.

Applications of Velocity Against Time Graphs

Velocity Against Time Graphs have numerous applications in various fields, including:

Physics Education: These graphs are essential tools in teaching kinematics, helping students visualize and understand the concepts of velocity, acceleration, and displacement.
Engineering: Engineers use these graphs to analyze the performance of vehicles, machines, and other moving systems. They help in designing systems that meet specific velocity and acceleration requirements.
Sports Science: In sports, these graphs are used to analyze the performance of athletes, helping coaches and trainers optimize training programs.
Aerospace: In the aerospace industry, Velocity Against Time Graphs are used to analyze the trajectories of aircraft and spacecraft, ensuring safe and efficient flight paths.

Creating a Velocity Against Time Graph

To create a Velocity Against Time Graph, follow these steps:

Gather data on the velocity of the object at different times.
Plot the velocity (y-axis) against time (x-axis).
Connect the data points to form the graph. The shape of the graph will depend on whether the velocity is constant, uniformly accelerating, or non-uniformly accelerating.
Analyze the graph to determine acceleration, displacement, and other relevant information.

📝 Note: Ensure that the data points are accurate and that the graph is plotted to scale for precise analysis.

Common Mistakes to Avoid

When working with Velocity Against Time Graphs, it's important to avoid common mistakes that can lead to incorrect interpretations:

Incorrect Scaling: Ensure that both the velocity and time axes are scaled correctly. Incorrect scaling can distort the graph and lead to inaccurate conclusions.
Misinterpreting the Slope: Remember that the slope of the graph represents acceleration, not velocity. A steep slope indicates high acceleration, not high velocity.
Ignoring Units: Always include units for velocity and time. Mixing units can lead to errors in calculations.
Overlooking Non-Uniform Acceleration: If the graph is curved, it indicates non-uniform acceleration. Be sure to analyze the graph carefully to understand the varying rates of acceleration.

Advanced Topics in Velocity Against Time Graphs

For those interested in delving deeper, there are several advanced topics related to Velocity Against Time Graphs that can provide a more comprehensive understanding of motion:

Integration and Differentiation: Understanding how to integrate and differentiate velocity equations can help in analyzing complex motion patterns.
Vector Analysis: In three-dimensional motion, velocity and acceleration are vectors. Analyzing these vectors can provide a more detailed understanding of an object's movement.
Relative Motion: When analyzing the motion of multiple objects, it's important to consider relative velocities and accelerations.
Energy and Work: The concepts of kinetic energy and work done can be related to velocity and acceleration, providing a broader perspective on motion.

By exploring these advanced topics, you can gain a deeper appreciation for the intricacies of motion and the powerful insights that Velocity Against Time Graphs can provide.

In conclusion, Velocity Against Time Graphs are indispensable tools for analyzing motion. They provide a visual representation of how an object’s velocity changes over time, allowing us to determine acceleration, displacement, and other key parameters. Whether you’re a student, engineer, or sports scientist, understanding how to create and interpret these graphs can enhance your ability to analyze and optimize motion in various applications. By mastering the concepts and techniques associated with Velocity Against Time Graphs, you can gain a deeper understanding of the dynamics of motion and apply this knowledge to solve real-world problems.
