Velocity Versus Time Graph

Understanding motion and its various aspects is fundamental in physics. One of the most effective ways to visualize and analyze motion is through the use of graphs. Among these, the Velocity Versus Time Graph is particularly useful for understanding how an object's velocity changes over time. This graph provides insights into acceleration, displacement, and other key aspects of motion.

Table of Contents

What is a Velocity Versus Time Graph?

A Velocity Versus Time Graph is a graphical representation where the vertical axis (y-axis) represents velocity and the horizontal axis (x-axis) represents time. This graph is crucial for analyzing the motion of an object, as it allows us to determine various parameters such as acceleration, displacement, and the nature of the motion (e.g., uniform, non-uniform, etc.).

Components of a Velocity Versus Time Graph

The primary components of a Velocity Versus Time Graph include:

Velocity (y-axis): This represents the speed of the object in a specific direction. It can be positive, negative, or zero.
Time (x-axis): This represents the duration over which the motion is being analyzed.
Slope of the Graph: The slope of the graph at any point represents the acceleration of the object at that instant.
Area Under the Curve: The area under the graph represents the displacement of the object over the given time interval.

Interpreting a Velocity Versus Time Graph

Interpreting a Velocity Versus Time Graph involves understanding the slope and the area under the curve. Here’s how you can interpret different aspects of the graph:

Slope and Acceleration

The slope of the graph at any point gives the acceleration of the object. If the slope is positive, the object is accelerating. If the slope is negative, the object is decelerating. A zero slope indicates that the object is moving at a constant velocity.

Area and Displacement

The area under the Velocity Versus Time Graph represents the displacement of the object. This can be calculated by integrating the velocity function over the time interval. For a constant velocity, the area is simply the product of velocity and time. For varying velocities, the area can be found using calculus or by approximating the area under the curve.

Types of Motion Represented by a Velocity Versus Time Graph

A Velocity Versus Time Graph can represent various types of motion, including uniform motion, uniformly accelerated motion, and non-uniform motion. Here are some examples:

Uniform Motion

In uniform motion, the velocity remains constant over time. The graph is a horizontal line, and the slope is zero, indicating no acceleration.

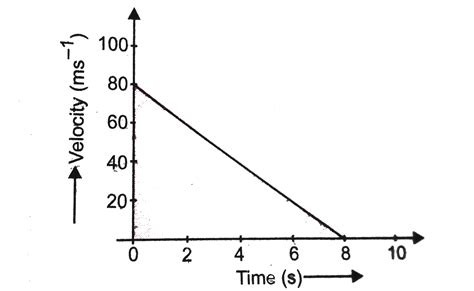

Uniformly Accelerated Motion

In uniformly accelerated motion, the velocity changes at a constant rate. The graph is a straight line with a non-zero slope, indicating constant acceleration.

Non-Uniform Motion

In non-uniform motion, the velocity changes at a varying rate. The graph is a curve, and the slope changes over time, indicating varying acceleration.

Examples of Velocity Versus Time Graphs

Let's consider a few examples to illustrate how different types of motion are represented on a Velocity Versus Time Graph.

Example 1: Uniform Motion

Consider an object moving at a constant velocity of 10 m/s for 5 seconds. The Velocity Versus Time Graph would be a horizontal line at 10 m/s from t = 0 to t = 5 seconds.

Example 2: Uniformly Accelerated Motion

Consider an object starting from rest and accelerating uniformly at 2 m/s² for 10 seconds. The Velocity Versus Time Graph would be a straight line starting from the origin and rising to 20 m/s at t = 10 seconds.

Example 3: Non-Uniform Motion

Consider an object whose velocity changes non-uniformly over time. For example, the velocity might increase rapidly at first and then level off. The Velocity Versus Time Graph would be a curve, with the slope changing over time.

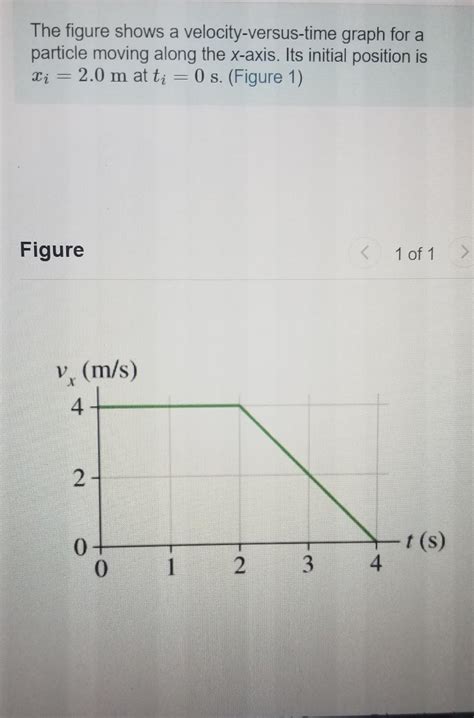

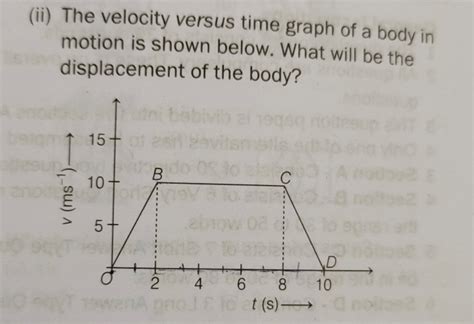

Calculating Displacement from a Velocity Versus Time Graph

To calculate the displacement from a Velocity Versus Time Graph, you need to find the area under the curve. This can be done using integration for continuous functions or by approximating the area for discrete data points.

For a constant velocity, the displacement (s) can be calculated as:

s = v * t

For varying velocities, the displacement can be calculated as the integral of velocity with respect to time:

s = ∫v dt

Where v is the velocity and t is the time.

💡 Note: For non-uniform motion, the area under the curve can be approximated using methods like the trapezoidal rule or Simpson's rule if exact integration is not feasible.

Calculating Acceleration from a Velocity Versus Time Graph

Acceleration can be determined from the slope of the Velocity Versus Time Graph. The slope at any point on the graph gives the instantaneous acceleration. For a linear graph, the slope is constant and represents uniform acceleration. For a curved graph, the slope changes, indicating varying acceleration.

Mathematically, acceleration (a) is the derivative of velocity (v) with respect to time (t):

a = dv/dt

Where v is the velocity and t is the time.

Applications of Velocity Versus Time Graphs

Velocity Versus Time Graphs have numerous applications in various fields, including physics, engineering, and sports. Some key applications include:

Physics: Analyzing the motion of objects under different conditions, such as free fall, projectile motion, and circular motion.
Engineering: Designing and analyzing the performance of vehicles, machinery, and other mechanical systems.
Sports: Studying the motion of athletes to improve performance and technique.

Common Mistakes to Avoid

When working with Velocity Versus Time Graphs, it's important to avoid common mistakes that can lead to incorrect interpretations. Some of these mistakes include:

Confusing velocity with speed. Velocity is a vector quantity that includes direction, while speed is a scalar quantity that only includes magnitude.
Misinterpreting the slope of the graph. The slope represents acceleration, not velocity.
Ignoring the area under the curve. The area under the graph represents displacement, not velocity.

💡 Note: Always double-check your calculations and interpretations to ensure accuracy.

Practical Examples and Exercises

To reinforce your understanding of Velocity Versus Time Graphs, consider the following practical examples and exercises:

Example 1: Analyzing a Car's Motion

Consider a car that accelerates from rest to 60 km/h in 10 seconds. Draw the Velocity Versus Time Graph and calculate the acceleration and displacement.

Example 2: Projectile Motion

Consider a projectile launched vertically with an initial velocity of 50 m/s. Draw the Velocity Versus Time Graph and calculate the maximum height and time of flight.

Exercise 1: Uniform Motion

Draw a Velocity Versus Time Graph for an object moving at a constant velocity of 20 m/s for 8 seconds. Calculate the displacement.

Exercise 2: Uniformly Accelerated Motion

Draw a Velocity Versus Time Graph for an object starting from rest and accelerating uniformly at 3 m/s² for 15 seconds. Calculate the final velocity and displacement.

Exercise 3: Non-Uniform Motion

Draw a Velocity Versus Time Graph for an object whose velocity changes non-uniformly over time. Calculate the displacement using the area under the curve.

Advanced Topics in Velocity Versus Time Graphs

For those interested in delving deeper into the subject, there are several advanced topics related to Velocity Versus Time Graphs that can be explored:

Relative Motion: Analyzing the motion of objects relative to each other using Velocity Versus Time Graphs.
Rotational Motion: Extending the concept to rotational motion, where angular velocity is plotted against time.
Differential Equations: Using differential equations to model and solve problems involving varying velocities and accelerations.

These advanced topics provide a deeper understanding of motion and its applications in various fields.

In conclusion, the Velocity Versus Time Graph is a powerful tool for analyzing and understanding motion. By interpreting the slope and area under the curve, you can determine acceleration, displacement, and other key parameters. Whether you’re studying physics, engineering, or sports, mastering the Velocity Versus Time Graph will enhance your ability to analyze and solve problems related to motion.
