In the realm of fluid dynamics and rheology, the measurement of viscosity is a critical aspect that influences various industries, from pharmaceuticals to food processing. One of the most precise and reliable instruments for this purpose is the Viscosimètre À Bille, or falling ball viscometer. This device operates on the principle of measuring the time it takes for a ball to fall through a fluid, providing accurate viscosity readings. Understanding the principles, applications, and maintenance of a Viscosimètre À Bille can significantly enhance the efficiency and accuracy of viscosity measurements in your laboratory or industrial setting.
Understanding the Viscosimètre À Bille

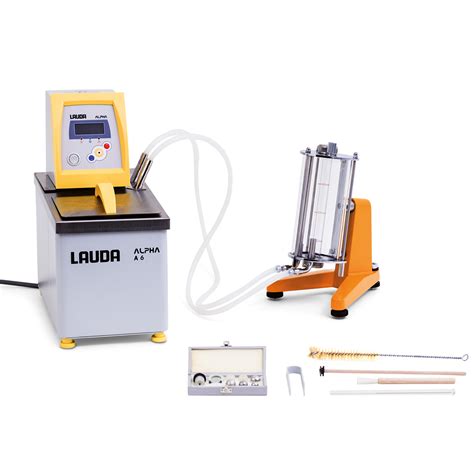

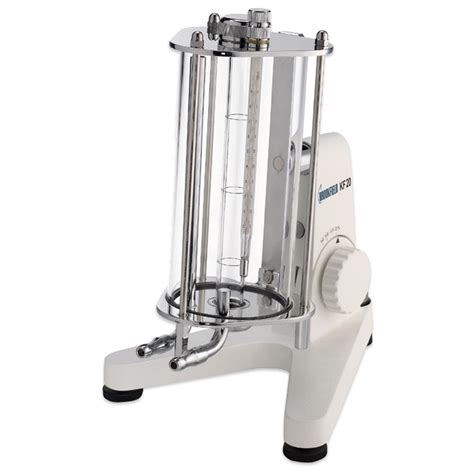

A Viscosimètre À Bille is a type of viscometer that determines the viscosity of a fluid by measuring the time it takes for a ball to fall through the fluid under the influence of gravity. The device consists of a vertical tube filled with the test fluid, through which a ball of known density and diameter is released. The time taken for the ball to travel a specific distance is recorded, and this data is used to calculate the viscosity of the fluid.
Principles of Operation
The operation of a Viscosimètre À Bille is based on Stokes' law, which describes the force acting on a spherical object moving through a viscous fluid. The key factors influencing the fall time of the ball include:
- The density of the ball
- The diameter of the ball
- The density of the fluid
- The viscosity of the fluid
- The acceleration due to gravity
By measuring the fall time and knowing the other parameters, the viscosity of the fluid can be calculated using the following formula derived from Stokes' law:
η = (2gr²(ρb - ρf)) / (9v)
Where:
- η is the viscosity of the fluid
- g is the acceleration due to gravity
- r is the radius of the ball
- ρb is the density of the ball
- ρf is the density of the fluid
- v is the terminal velocity of the ball
Applications of the Viscosimètre À Bille
The Viscosimètre À Bille finds applications in various industries where precise viscosity measurements are crucial. Some of the key areas include:
- Pharmaceuticals: Ensuring the correct viscosity of liquids for drug formulations and suspensions.
- Food and Beverage: Maintaining the consistency of products like sauces, syrups, and beverages.
- Chemical Industry: Monitoring the viscosity of chemicals and solvents to ensure quality and performance.
- Petroleum Industry: Measuring the viscosity of oils and lubricants to ensure they meet required specifications.
- Cosmetics: Ensuring the correct viscosity of creams, lotions, and gels for optimal application and user experience.
Advantages of Using a Viscosimètre À Bille
The Viscosimètre À Bille offers several advantages over other types of viscometers:
- High Accuracy: Provides precise measurements, especially for low-viscosity fluids.
- Simplicity: Easy to operate and maintain, requiring minimal training.
- Versatility: Can be used for a wide range of fluids, from water-like liquids to more viscous solutions.
- Non-Destructive: The fluid sample remains unchanged after the measurement, allowing for further analysis.
- Cost-Effective: Generally more affordable compared to other high-precision viscometers.
Calibration and Maintenance
To ensure the accuracy and reliability of a Viscosimètre À Bille, regular calibration and maintenance are essential. Here are some key steps to follow:
- Calibration: Use a standard fluid with a known viscosity to calibrate the instrument. Record the fall time and adjust the instrument settings if necessary.
- Cleaning: After each use, clean the tube and the ball thoroughly to remove any residue that could affect future measurements.
- Inspection: Regularly inspect the tube for any signs of wear or damage. Replace the tube if necessary.
- Storage: Store the instrument in a clean, dry place to prevent contamination and damage.
🔧 Note: Always follow the manufacturer's guidelines for calibration and maintenance to ensure the longevity and accuracy of your Viscosimètre À Bille.
Common Issues and Troubleshooting
Despite its simplicity, a Viscosimètre À Bille can encounter issues that affect its performance. Here are some common problems and their solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Inconsistent Readings | Contamination or residue in the tube | Clean the tube thoroughly and recalibrate the instrument |
| Ball Sticking | Fluid viscosity too high or tube not vertical | Ensure the tube is perfectly vertical and use a less viscous fluid if necessary |
| Slow Fall Time | Fluid viscosity too low or ball too dense | Use a more viscous fluid or a lighter ball |
| Erratic Fall Time | External vibrations or disturbances | Place the instrument on a stable surface away from vibrations |
Comparing Viscosimètre À Bille with Other Viscometers
While the Viscosimètre À Bille is a reliable tool, it is essential to understand how it compares to other types of viscometers. Here is a brief comparison:
| Type of Viscometer | Principle of Operation | Advantages | Disadvantages |
|---|---|---|---|
| Capillary Viscometer | Measures the time it takes for a fluid to flow through a capillary tube | High precision, suitable for low-viscosity fluids | Requires careful cleaning, not suitable for high-viscosity fluids |
| Rotational Viscometer | Measures the torque required to rotate a spindle in the fluid | Versatile, can measure a wide range of viscosities | More complex and expensive |
| Viscosimètre À Bille | Measures the fall time of a ball through the fluid | Simple, accurate, cost-effective | Limited to fluids with moderate viscosities |
Each type of viscometer has its strengths and weaknesses, and the choice of instrument depends on the specific requirements of the application.
In conclusion, the Viscosimètre À Bille is a valuable tool for measuring the viscosity of fluids with precision and ease. Its simplicity, accuracy, and versatility make it a popular choice in various industries. By understanding its principles, applications, and maintenance requirements, you can ensure reliable and consistent viscosity measurements in your laboratory or industrial setting. Regular calibration and troubleshooting can help maintain the instrument’s performance, ensuring accurate results for your viscosity measurements.
