Understanding the fundamentals of a voltaic cell is crucial for anyone delving into the world of electrochemistry. A voltaic cell, also known as a galvanic cell, is a device that converts chemical energy into electrical energy through a spontaneous redox reaction. One of the most effective ways to grasp the concept is by examining a Voltaic Cell Diagram. This diagram provides a visual representation of the components and processes involved in a voltaic cell, making it easier to comprehend the underlying principles.

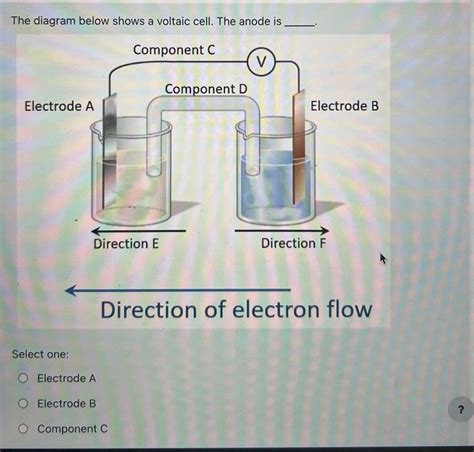

Components of a Voltaic Cell
A typical voltaic cell consists of several key components:
- Anode: The electrode where oxidation occurs. It is the negative terminal of the cell.
- Cathode: The electrode where reduction occurs. It is the positive terminal of the cell.
- Electrolyte: A solution or molten salt that conducts electricity through the movement of ions.
- Salt Bridge: A component that connects the two half-cells, allowing ions to flow between them while preventing the mixing of the electrolytes.
- External Circuit: The path through which electrons flow from the anode to the cathode, completing the circuit.
How a Voltaic Cell Works
A voltaic cell operates through a series of redox reactions. The overall process can be broken down into two half-reactions:
- Oxidation Half-Reaction: Occurs at the anode. This is where the substance loses electrons.
- Reduction Half-Reaction: Occurs at the cathode. This is where the substance gains electrons.
For example, consider a simple voltaic cell using zinc (Zn) and copper (Cu) electrodes in their respective sulfate solutions. The reactions are as follows:
- Anode (Oxidation): Zn(s) → Zn²⁺(aq) + 2e⁻
- Cathode (Reduction): Cu²⁺(aq) + 2e⁻ → Cu(s)
The electrons released at the anode travel through the external circuit to the cathode, creating an electric current. Simultaneously, ions move through the salt bridge to maintain electrical neutrality in both half-cells.

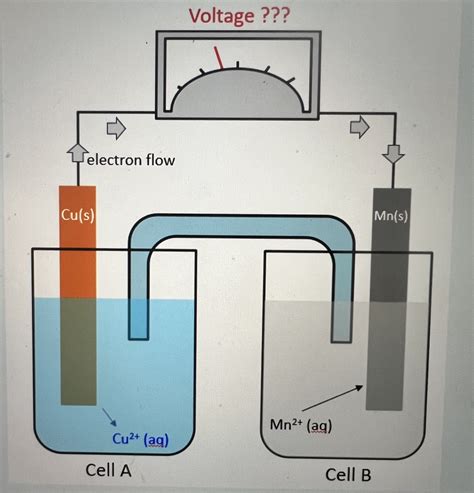

Constructing a Voltaic Cell Diagram
Creating a Voltaic Cell Diagram involves illustrating the components and their interactions. Here’s a step-by-step guide to constructing a basic voltaic cell diagram:
- Draw the Anode and Cathode: Represent the anode and cathode as separate electrodes. Label them clearly.
- Add the Electrolytes: Show the electrolytes surrounding each electrode. Use appropriate chemical formulas to indicate the ions present.
- Include the Salt Bridge: Connect the two half-cells with a salt bridge. This can be represented as a U-shaped tube filled with a gel or solution containing ions.
- Draw the External Circuit: Connect the anode and cathode with a wire to represent the external circuit through which electrons flow.
- Label the Half-Reactions: Write the oxidation and reduction half-reactions near their respective electrodes.
📝 Note: Ensure that the diagram is clear and labeled accurately to avoid confusion. Use arrows to indicate the direction of electron flow and ion movement.
Example of a Voltaic Cell Diagram

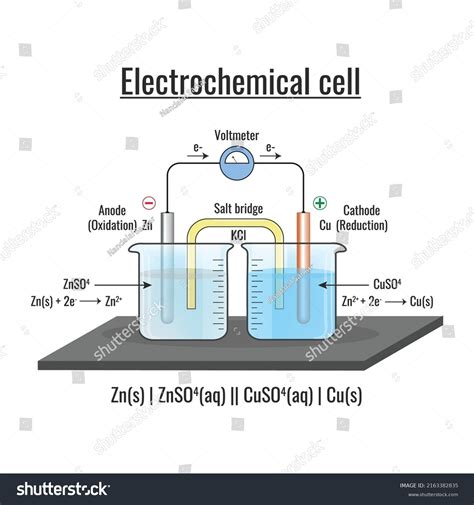

Below is an example of a Voltaic Cell Diagram for a zinc-copper cell:

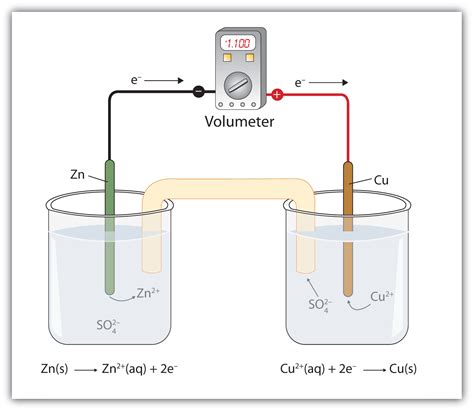

Applications of Voltaic Cells
Voltaic cells have numerous applications in various fields. Some of the most common uses include:
- Batteries: Voltaic cells are the basis for many types of batteries, including alkaline and zinc-carbon batteries.
- Fuel Cells: These are a type of voltaic cell that converts the chemical energy from a fuel into electricity through a chemical reaction with oxygen or another oxidizing agent.
- Corrosion Protection: Voltaic cells can be used to protect metals from corrosion by acting as sacrificial anodes.
- Electroplating: In this process, a voltaic cell is used to coat a metal object with a thin layer of another metal.
Factors Affecting Voltaic Cell Performance
Several factors can influence the performance of a voltaic cell:
- Concentration of Electrolytes: The concentration of ions in the electrolyte solution affects the cell's voltage and current.
- Temperature: Higher temperatures generally increase the rate of the redox reactions, leading to higher current output.
- Surface Area of Electrodes: Larger surface areas provide more sites for redox reactions, enhancing the cell's performance.
- Type of Electrolyte: Different electrolytes have varying conductivities, which can affect the cell's efficiency.
Calculating Cell Potential
The potential difference (voltage) of a voltaic cell can be calculated using the standard reduction potentials of the half-reactions involved. The standard cell potential (E°cell) is given by:
E°cell = E°cathode - E°anode
Where E°cathode and E°anode are the standard reduction potentials of the cathode and anode reactions, respectively. The standard reduction potentials can be found in standard reduction potential tables.
For example, the standard reduction potentials for the zinc and copper half-reactions are:
| Half-Reaction | Standard Reduction Potential (V) |
|---|---|
| Zn²⁺(aq) + 2e⁻ → Zn(s) | -0.76 |
| Cu²⁺(aq) + 2e⁻ → Cu(s) | +0.34 |
Therefore, the standard cell potential for the zinc-copper voltaic cell is:
E°cell = 0.34 V - (-0.76 V) = 1.10 V
📝 Note: The standard cell potential is measured under standard conditions (25°C, 1 atm pressure, and 1 M concentration of solutions).
Safety Considerations
When working with voltaic cells, it is essential to follow safety guidelines to prevent accidents:
- Handle Chemicals Carefully: Always wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
- Ventilate the Area: Ensure proper ventilation to avoid the accumulation of harmful fumes.
- Disposal of Waste: Dispose of chemical waste according to local regulations to minimize environmental impact.
- Avoid Short Circuits: Be cautious when connecting the electrodes to prevent short circuits, which can cause overheating and potential fires.
By understanding the components, operation, and safety considerations of a voltaic cell, you can effectively utilize this fundamental electrochemical device in various applications. The Voltaic Cell Diagram serves as a valuable tool for visualizing and comprehending the intricate processes involved in converting chemical energy into electrical energy.
In summary, a voltaic cell is a versatile and essential device in electrochemistry. By examining a Voltaic Cell Diagram, one can gain a deeper understanding of the redox reactions, components, and factors that influence its performance. Whether used in batteries, fuel cells, or other applications, voltaic cells play a crucial role in modern technology and industry. Their study not only enhances our knowledge of electrochemical principles but also opens up avenues for innovation and development in energy conversion and storage.
