What Mechanical Advantage

Understanding the concept of mechanical advantage is crucial for anyone interested in physics, engineering, or even everyday problem-solving. Mechanical advantage refers to the factor by which a machine multiplies the force put into it. This principle is fundamental in various mechanical systems, from simple tools like levers and pulleys to complex machinery. By grasping what mechanical advantage is and how it works, you can optimize the efficiency of mechanical systems and solve real-world problems more effectively.

Table of Contents

What is Mechanical Advantage?

Mechanical advantage is a measure of the force amplification achieved by using a tool, mechanical device, or machine system. It is the ratio of the force produced by a machine to the force applied to it. In simpler terms, it tells you how much easier a task becomes when you use a tool or machine. For example, using a lever to lift a heavy object reduces the amount of force you need to apply, thus increasing your mechanical advantage.

Types of Mechanical Advantage

There are several types of mechanical advantage, each corresponding to different types of simple machines. Understanding these types can help you apply the concept more effectively in various scenarios.

Lever Mechanical Advantage

A lever is one of the simplest machines and consists of a rigid bar that pivots around a fulcrum. The mechanical advantage of a lever depends on the lengths of the effort arm and the load arm. The formula for lever mechanical advantage is:

MA = Effort Arm Length / Load Arm Length

For example, if you have a lever with an effort arm of 4 meters and a load arm of 1 meter, the mechanical advantage would be 4. This means you can lift a load that is four times heavier than the force you apply.

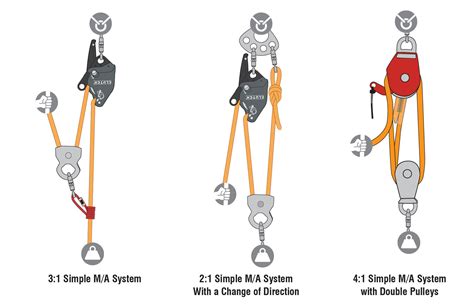

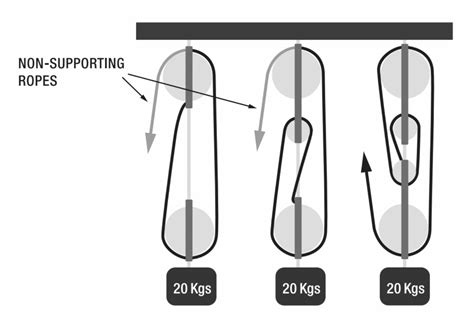

Pulley Mechanical Advantage

Pulleys are used to change the direction of a force or to gain a mechanical advantage. The mechanical advantage of a pulley system depends on the number of supporting strands. The formula for pulley mechanical advantage is:

MA = Number of Supporting Strands

For instance, a single fixed pulley has a mechanical advantage of 1, while a block and tackle system with four supporting strands has a mechanical advantage of 4.

Inclined Plane Mechanical Advantage

An inclined plane is a flat surface raised at an angle, which allows you to move a load more easily by reducing the force required. The mechanical advantage of an inclined plane is given by the ratio of the length of the incline to the height of the incline. The formula is:

MA = Length of Incline / Height of Incline

For example, if you have an inclined plane that is 10 meters long and 2 meters high, the mechanical advantage would be 5. This means you can move a load that is five times heavier than the force you apply.

Wheel and Axle Mechanical Advantage

A wheel and axle is a simple machine consisting of a wheel attached to a smaller axle. The mechanical advantage is determined by the ratio of the radius of the wheel to the radius of the axle. The formula is:

MA = Radius of Wheel / Radius of Axle

For instance, if the radius of the wheel is 5 meters and the radius of the axle is 1 meter, the mechanical advantage would be 5. This means you can apply a force that is five times less than the load you are moving.

Screw Mechanical Advantage

A screw is essentially an inclined plane wrapped around a cylinder. The mechanical advantage of a screw is given by the ratio of the circumference of the screw to the pitch of the screw. The formula is:

MA = Circumference of Screw / Pitch of Screw

For example, if the circumference of the screw is 10 meters and the pitch is 2 meters, the mechanical advantage would be 5. This means you can apply a force that is five times less than the load you are moving.

Calculating Mechanical Advantage

Calculating mechanical advantage involves understanding the forces involved and the specific type of machine or tool being used. Here are the steps to calculate mechanical advantage for different types of simple machines:

Steps to Calculate Lever Mechanical Advantage

1. Identify the lengths of the effort arm and the load arm.

2. Use the formula: MA = Effort Arm Length / Load Arm Length.

3. Plug in the values and calculate the mechanical advantage.

💡 Note: Ensure that the lengths are measured accurately for precise calculations.

Steps to Calculate Pulley Mechanical Advantage

1. Count the number of supporting strands in the pulley system.

2. Use the formula: MA = Number of Supporting Strands.

3. Plug in the value and calculate the mechanical advantage.

💡 Note: The number of supporting strands is crucial for determining the mechanical advantage of a pulley system.

Steps to Calculate Inclined Plane Mechanical Advantage

1. Measure the length and height of the inclined plane.

2. Use the formula: MA = Length of Incline / Height of Incline.

3. Plug in the values and calculate the mechanical advantage.

💡 Note: The length and height should be measured along the same plane for accurate results.

Steps to Calculate Wheel and Axle Mechanical Advantage

1. Measure the radii of the wheel and the axle.

2. Use the formula: MA = Radius of Wheel / Radius of Axle.

3. Plug in the values and calculate the mechanical advantage.

💡 Note: Ensure that the radii are measured from the center of the wheel and axle to the outer edge.

Steps to Calculate Screw Mechanical Advantage

1. Measure the circumference of the screw and the pitch.

2. Use the formula: MA = Circumference of Screw / Pitch of Screw.

3. Plug in the values and calculate the mechanical advantage.

💡 Note: The pitch is the distance between adjacent threads on the screw.

Applications of Mechanical Advantage

Mechanical advantage is applied in various fields and everyday scenarios. Understanding its applications can help you appreciate its significance and versatility.

Engineering and Construction

In engineering and construction, mechanical advantage is used to design and build structures and machines that can handle heavy loads efficiently. For example, cranes and hoists use pulley systems to lift and move heavy objects with ease. Bridges and buildings are designed with mechanical principles in mind to ensure stability and safety.

Manufacturing

In manufacturing, mechanical advantage is crucial for optimizing production processes. Machines like presses, drills, and lathes use mechanical principles to perform tasks with precision and efficiency. Understanding mechanical advantage helps in designing and operating these machines effectively.

Everyday Life

Mechanical advantage is also present in everyday tools and devices. For instance, scissors use levers to cut materials, while bottle openers use a combination of levers and wheels to open bottles. Even simple tools like hammers and screwdrivers rely on mechanical principles to function effectively.

Examples of Mechanical Advantage in Action

To better understand what mechanical advantage is and how it works, let's look at some real-world examples.

Lever Example

Consider a seesaw on a playground. The seesaw acts as a lever with the fulcrum at the center. If a child sits closer to the fulcrum, they have a shorter load arm, requiring more force to lift the other child. Conversely, if the child sits farther from the fulcrum, they have a longer load arm, requiring less force. This demonstrates how the position of the fulcrum affects the mechanical advantage.

Pulley Example

Imagine a block and tackle system used to lift a heavy object. If the system has four supporting strands, the mechanical advantage is 4. This means you can lift an object that is four times heavier than the force you apply. The pulleys change the direction of the force and distribute the load, making it easier to lift the object.

Inclined Plane Example

Think about a ramp used to load a truck. The ramp acts as an inclined plane, allowing you to push a heavy object up with less force than if you were to lift it directly. The longer the ramp, the greater the mechanical advantage, making it easier to move the object.

Wheel and Axle Example

Consider a doorknob. The doorknob acts as a wheel and axle, with the knob being the wheel and the shaft being the axle. When you turn the doorknob, the mechanical advantage allows you to apply a small force to open the door, which would require much more force if you were to push it directly.

Screw Example

Think about a screw used to fasten two pieces of wood together. The screw acts as an inclined plane wrapped around a cylinder. As you turn the screw, the mechanical advantage allows you to apply a small force to tighten it, which would require much more force if you were to push it directly into the wood.

Factors Affecting Mechanical Advantage

Several factors can affect the mechanical advantage of a system. Understanding these factors can help you optimize the performance of mechanical devices and tools.

Efficiency

Efficiency refers to the ratio of the output work to the input work. In an ideal scenario, the mechanical advantage would be equal to the efficiency. However, in real-world situations, friction and other losses reduce the efficiency, resulting in a lower mechanical advantage. For example, a pulley system with friction will have a lower mechanical advantage than an ideal frictionless system.

Friction

Friction is a force that opposes the motion of objects. In mechanical systems, friction can reduce the mechanical advantage by requiring more force to overcome the resistance. For instance, a lever with a rough surface will have a lower mechanical advantage than a smooth one due to increased friction.

Material and Design

The material and design of a mechanical system can also affect its mechanical advantage. For example, a lever made of a strong, lightweight material like aluminum will have a higher mechanical advantage than one made of a heavier material like steel. Similarly, a well-designed pulley system with smooth surfaces and minimal friction will have a higher mechanical advantage than a poorly designed one.

Mechanical Advantage in Complex Systems

While simple machines like levers and pulleys have straightforward mechanical advantages, complex systems often involve combinations of these simple machines. Understanding how mechanical advantage works in complex systems can help you design and optimize more efficient machines.

Compound Machines

A compound machine is a combination of two or more simple machines working together. For example, a bicycle is a compound machine that combines wheels, axles, and levers. The mechanical advantage of a compound machine is the product of the mechanical advantages of its individual components. For instance, if a bicycle has a gear system with a mechanical advantage of 3 and a pedal system with a mechanical advantage of 2, the overall mechanical advantage would be 6.

Compound Pulleys

A compound pulley system consists of multiple pulleys working together to lift a heavy object. The mechanical advantage of a compound pulley system is the product of the mechanical advantages of the individual pulleys. For example, if you have a system with two pulleys, each with a mechanical advantage of 2, the overall mechanical advantage would be 4.

Gear Systems

Gear systems are used to transmit power and change the speed and direction of rotation. The mechanical advantage of a gear system is determined by the ratio of the radii of the gears. For example, if you have a gear system with a large gear and a small gear, the mechanical advantage would be the ratio of the radius of the large gear to the radius of the small gear. This allows you to apply a small force to turn the large gear, which in turn moves the small gear with greater force.

Mechanical Advantage in Everyday Tools

Many everyday tools and devices rely on mechanical advantage to function effectively. Understanding how these tools work can help you use them more efficiently and solve problems more effectively.

Scissors

Scissors are a simple tool that uses levers to cut materials. The blades of the scissors act as levers, with the pivot point at the fulcrum. When you apply force to the handles, the blades move together, cutting the material. The mechanical advantage of scissors allows you to cut through materials with less force than if you were to use your fingers.

Bottle Openers

Bottle openers use a combination of levers and wheels to open bottles. The lever part of the opener allows you to apply a small force to lift the cap, while the wheel part provides a mechanical advantage by changing the direction of the force. This makes it easier to open bottles with less effort.

Hammers

Hammers use the principle of mechanical advantage to drive nails into surfaces. The head of the hammer acts as a lever, with the handle providing the effort arm. When you swing the hammer, the mechanical advantage allows you to apply a large force to the nail with a relatively small effort.

Screwdrivers

Screwdrivers use the principle of mechanical advantage to tighten or loosen screws. The handle of the screwdriver acts as a lever, with the blade providing the effort arm. When you turn the screwdriver, the mechanical advantage allows you to apply a small force to tighten or loosen the screw with less effort.

Mechanical Advantage in Sports

Mechanical advantage is also applied in various sports to enhance performance and efficiency. Understanding how mechanical advantage works in sports can help athletes improve their techniques and achieve better results.

Archery

In archery, the bow acts as a lever, with the string providing the effort arm and the arrow acting as the load. The mechanical advantage of the bow allows the archer to apply a small force to the string, which in turn propels the arrow with great force. This makes it easier to hit targets with precision and accuracy.

Golf

In golf, the club acts as a lever, with the shaft providing the effort arm and the head acting as the load. The mechanical advantage of the club allows the golfer to apply a small force to the shaft, which in turn propels the ball with great force. This makes it easier to hit the ball with precision and distance.

Tennis

In tennis, the racket acts as a lever, with the handle providing the effort arm and the strings acting as the load. The mechanical advantage of the racket allows the player to apply a small force to the handle, which in turn propels the ball with great force. This makes it easier to hit the ball with precision and power.

Mechanical Advantage in Biology

Mechanical advantage is not limited to man-made machines and tools; it is also present in biological systems. Understanding how mechanical advantage works in biology can help you appreciate the efficiency and complexity of living organisms.

Muscles and Bones

In the human body, muscles and bones work together to provide mechanical advantage. For example, the biceps muscle acts as a lever, with the elbow acting as the fulcrum. When you flex your arm, the mechanical advantage allows you to lift a heavy object with less force than if you were to use your fingers.

Insect Wings

Insect wings use the principle of mechanical advantage to fly. The wings act as levers, with the thorax providing the effort arm and the wing tips acting as the load. The mechanical advantage of the wings allows the insect to apply a small force to the thorax, which in turn propels the wings with great force. This makes it easier for the insect to fly with precision and agility.

Plant Stems

Plant stems use the principle of mechanical advantage to support the plant and distribute nutrients. The stem acts as an inclined plane, with the roots providing the effort arm and the leaves acting as the load. The mechanical advantage of the stem allows the plant to apply a small force to the roots, which in turn supports the leaves with great force. This makes it easier for the plant to grow and thrive.

Mechanical Advantage in Robotics

In robotics, mechanical advantage is crucial for designing efficient and effective robots. Understanding how mechanical advantage works in robotics can help you create robots that can perform tasks with precision and efficiency.

Robotic Arms

Robotic arms use the principle of mechanical advantage to perform tasks with precision and efficiency. The arm acts as a lever, with the base providing the effort arm and the end effector acting as the load. The mechanical advantage of the arm allows the robot to apply a small force to the base, which in turn moves the end effector with great force. This makes it easier for the robot to perform tasks with precision and accuracy.

Robotic Grippers

Robotic grippers use the principle of mechanical advantage to grasp and manipulate objects. The gripper acts as a lever, with the base providing the effort arm and the fingers acting as the load. The mechanical advantage of the gripper allows the robot to apply a small force to the base, which in turn moves the fingers with great force. This makes it easier for the robot to grasp and manipulate objects with precision and control.

Robotic Wheels

Robotic wheels use the principle of mechanical advantage to move efficiently. The wheel acts as a lever, with the axle providing the effort arm and the rim acting as the load. The mechanical advantage of the wheel allows the robot to apply a small force to the axle, which in turn moves the rim with great force. This makes it easier for the robot to move with precision and speed.

Mechanical Advantage in Everyday Life

Mechanical advantage is present in many everyday tools and devices, making our lives easier and more efficient. Understanding how mechanical advantage works in everyday life can help you appreciate the simplicity and effectiveness of these tools.

Doorknobs

Doorknobs use the principle of mechanical advantage to open doors with ease. The knob acts as a wheel and axle, with the knob providing the effort arm and the shaft acting as the load. The mechanical advantage of the doorknob allows you to apply a small force to the knob, which in turn opens the door with great force. This makes it easier to open doors with less effort.

Can Openers

Can openers use the principle of mechanical advantage to open cans with ease. The opener acts as a lever, with the handle providing the effort arm and the cutting wheel acting as the load. The mechanical
